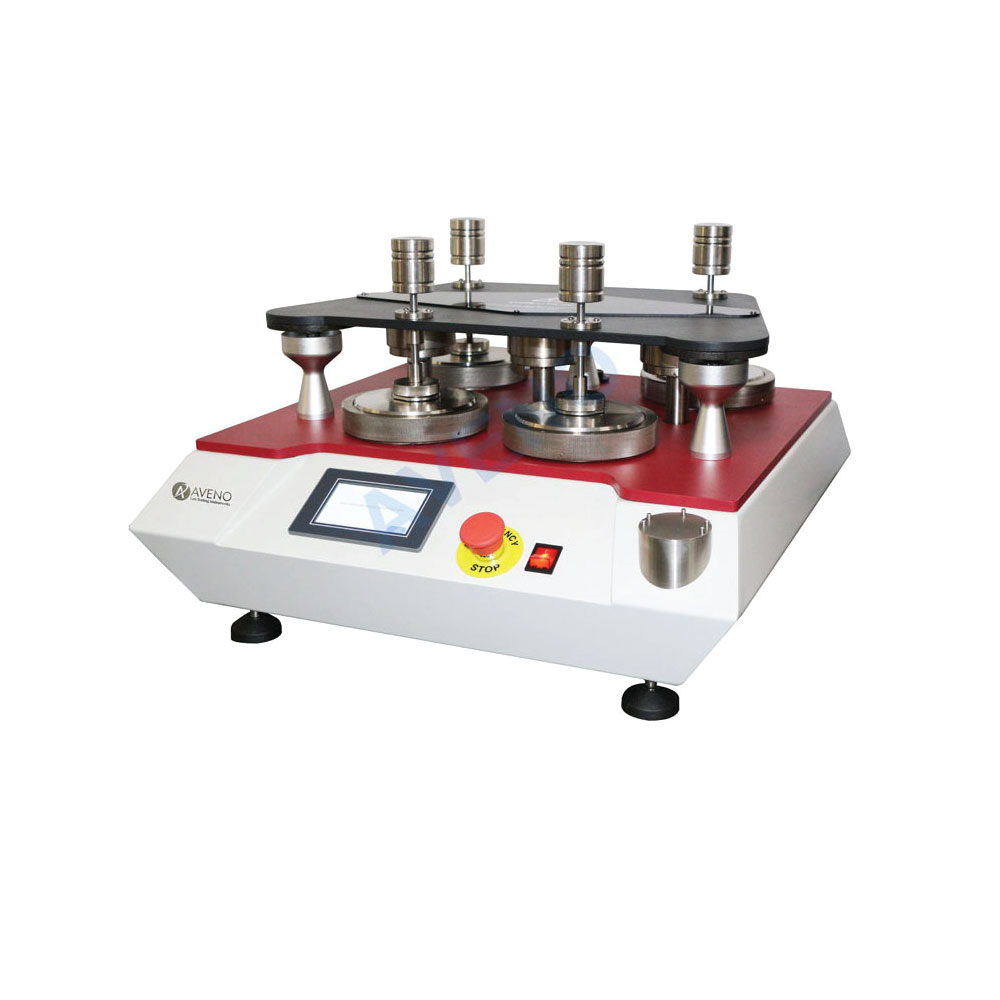

Martindale Abrasion And Pilling Tester AG04
৳ 1.00
• Brand: Aveno Tester
• Model: AG04
• Condition: New
• Warranty: 1 Year
Martindale Abrasion And Pilling Tester AG04 Price in Bangladesh
Martindale Abrasion and Pilling Tester AG04 is used to determine the abrasion resistance. Pilling performance and surface changes of woven fabrics, knitted fabrics, pile fabrics, coated fabrics and non-woven fabrics. Martindale abrasion tester is available in 4, 6, 8 and 9 test stations. Here are more abrasion and pilling tester.
FEATURE
- The pressure plate is made of special aluminum alloy to ensure long-term use without deformation.
- Needle roller bearing connection drive to ensure no error in each workbench test.
- Multiple sets of running programs and multiple counting methods can be preset.
| Name | Details |
| Model | AG04 |
| Brand | Aveno Tester |
| Origin | China |
| Condition | New |
| Test Position | 4, 6, 8, 9 |
| Control Mode | PLC control with touch screen Display |
| Count Range | 0~999999 times |
| The Maximum Dynamic Range | Cross Range 60.5 ±0.5mm, Direction 24 ±0.5mm |
| Pressure Weight: | (A) Holder: 198 ±2g, (B) Cloth Sample Weight: 395 ±2g, (C) Furniture Part Sample Weight: 594 ±2g, (D) B Type Clamp: 155 ±1g, (E)Stainless Steel Butterfly: 260 ±1g |
| Rubbing Diameter | (A) Rubbing Head: 198g Friction Head ɸ28.65 ±0.05mm, Pressurized Gravity: 12Kpa, (B) Rubbing Head: 155g Friction Head ɸ90 ±0.10mm, Pressurized Gravity: 9Kpa |
| Friction Relative Speed | 50 ±2 r/min can be adjust |
| Sample Pressing Hammer Weight | 2385 ±10g |
| Power Supply | AC 220V, 50/60HZ |
STANDARD ACCESSORIES OF MARTINDALE
| Name | Details |
| Abrasion Weight and Holder | 1 Set |
| Pilling Weight and Holder | 1 Set |
| Standard Abradents Fabric | 2 pcs/ head |
| Standard Backing Foam | 2 pcs/head |
| Standard Woven Felt Discs 140mm | 2 pcs/ head |
| Standard Woven Felt Discs 90mm | 2 pcs/ head |
| Sample cutting template (Φ38/90/140mm) | each of 1pc |
| Pressing Weight | 1pc |
| Bowl shape sample loader | 1pc |
| Steel ball | 3pcs |
| Power line | 1pc |
| English manual | 1pc |
| Certificate of quality | 1pc |
OPTIONAL ACCESSORIES OF MARTINDALE
| Name Details |
| Circular Sample Cutter(38mm) |
| Circular Sample Cutter (90mm) |
| Circular Sample Cutter (140mm) |
| M25 Standard Wool Abradent Fabric (1.6*5m/pack) |
| SM28 Standard Backing Foam (250*250mm/box) |
| SM26 SDC woven Felt Pads (140mm diameter/24pcs) |
| SM26 SDC Woven Felt Pads (90mm diameter/24pcs) |
| SM50 Photographs for pilling test IWS ASTM (set of 4*5/20pcs) |
| EMPA Photographic Standards for Pilling Test (3*4 knitted 3stes/pcs/set) |
| EMPA Photographic Standards for Pilling Test (3*4 woven) |
STANDARDS OF MARTINDALE
- ASTM D4966,4970,
- ISO12945.2, 12947.1,
- ISO 5470.2,
- DIN 53863,
- JIS L1096,
- IWS TM 196,112,
- GB/T 480 2.2, 19089,
- GB/T 13775,
- FZ/T 20020,
- BS3424/5690,
- EN 388.
